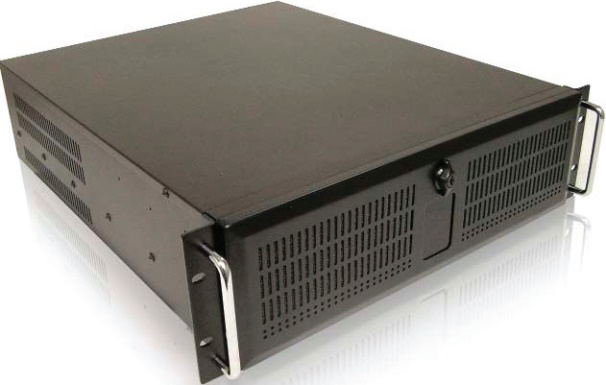

RS-100 product family provides a ready-to-run desktop unit for record and replay of primary radar video with related AIS and NMEA navigation data. The system is offered in a range of variants to provide an integrated all-in-one desktop unit for developers working with primary radar. Alternatively, RS-100 can provide separate radar record and replay units, to permit capture of data from one location and replay in another.

For recording, the unit can receive radar video as either standard ASTERIX CAT-240 network format or else from radar signals (video, trigger, azimuth). Up to 3 channels can be recorded along with AIS and NMEA 0183 navigation data for shipboard applications, in addition to network messages that can be captured and subsequently replayed without interpretation.

On replay, the unit can output network video and/or radar signals with up to 3 channels of video replayed synchronised with the AIS and NMEA data streams.

The unit provides a local display of the radar video, showing the user what is currently being recorded/replayed. Control is provided by a convenient graphical interface or via a C++/.NET interface, for remote network operation.

For system integrators or OEM developers, the software and radar input/output cards are available as components for integration into a custom system. Please contact us for details of standard system options.

Feature Summary

 · Records radar video from ASTERIX CAT-240 or standard radar signal sources

 · Multiple input channels

 · Recording to local hard drive

 · Local GUI or network control of recording process

 · Visual display of radar video being recorded

 · Optional radar compression

 · AIS recording and replay

 · NMEA 0183 GPS, Navigation data (serial or network) record and replay

 · Record and replay of other network messages (without interpretation)

 · Replays radar video in ASTERIX CAT-240 or standard radar signals using HPx-300

 · Multiple output channels

 · Optional simulation of radar video, including multi-radar, multi-target scenarios

 · Available as integrated systems or OEM components

Components for customer integration

Component	Description
HPx-200 (Half length, full height PCI card)	Radar input card for recording (PCI version)
HPx-200e (Half length, full height, x1 PCIe card)	Radar input card for recording (PCI express version)
HPx-300 (Half length, full height, x1 PCIe card)	Radar output card for replay (Only available in PCI express version)
SPx Simulator runtime license	imulator software. Output is either ASTERIX CAT-240 video and/or radar signals (with HPx-300). Windows only.
SPx Record/Replay Application software runtime license	Software for Record/Replay using HPx-200 and HPx-300 cards. Windows only
Hardware cards and software are supplied for customer integration in a Windows 7 or 8 based PC. The requirements of the host computer depend on the number of channels for record or replay
