Overview

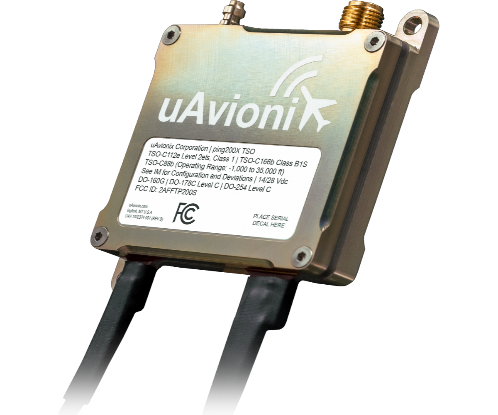

ping200X is a complete system designed to meet the Transponder and Automatic Dependent Surveillance – Broadcast (ADS-B) surveillance requirements for operating an Unmanned Aircraft (UA) in controlled airspace. The system replies to Mode A, Mode C, and Mode S interrogations and squitters ADS-B messages, all in accordance with RTCA performance standards for Mode S transponders and Extended Squitter ADS-B. Together, they provide ATC and nearby aircraft equipped with a TCAS or ADS-B receiver full knowledge of the UA’s 3-D whereabouts. Heightened situational awareness leads to timely maneuvering, adequate separation, and enhanced airspace safety that benefits everyone. Also integrated into ping200X is a certified pressure altitude sensor and encoder that complies with SAE aviation standard AS 8003.Parameters
| Specification | Value |
| Input Voltage |
11-34V (3S-8S LiPo) 1.5W Continuous On/Alt 4W Peak (8ms maximum) |
| Size | 47 x 54 x 9 mm |
| Weight | 50 grams |
| SDA/SIL | 2/3 |
| Operating Temp | -45 to 70°C |
| Transponder | |
| MTL 1030MHz | -74dBm ±3dB |
| Altimeter | |
| Range | -1000 to 35,000ft |
| Interfaces | |
| Control | |
| Baudrate | 1200-2Mbps |
| Protocol | GDL90+ |
| Position | |
| Baudrate | 115200bps |
| Protocol | uAvionix OEM Protocol |
| Options | |
| 1030/1090MHz Transponder Antenna | |
