Overview

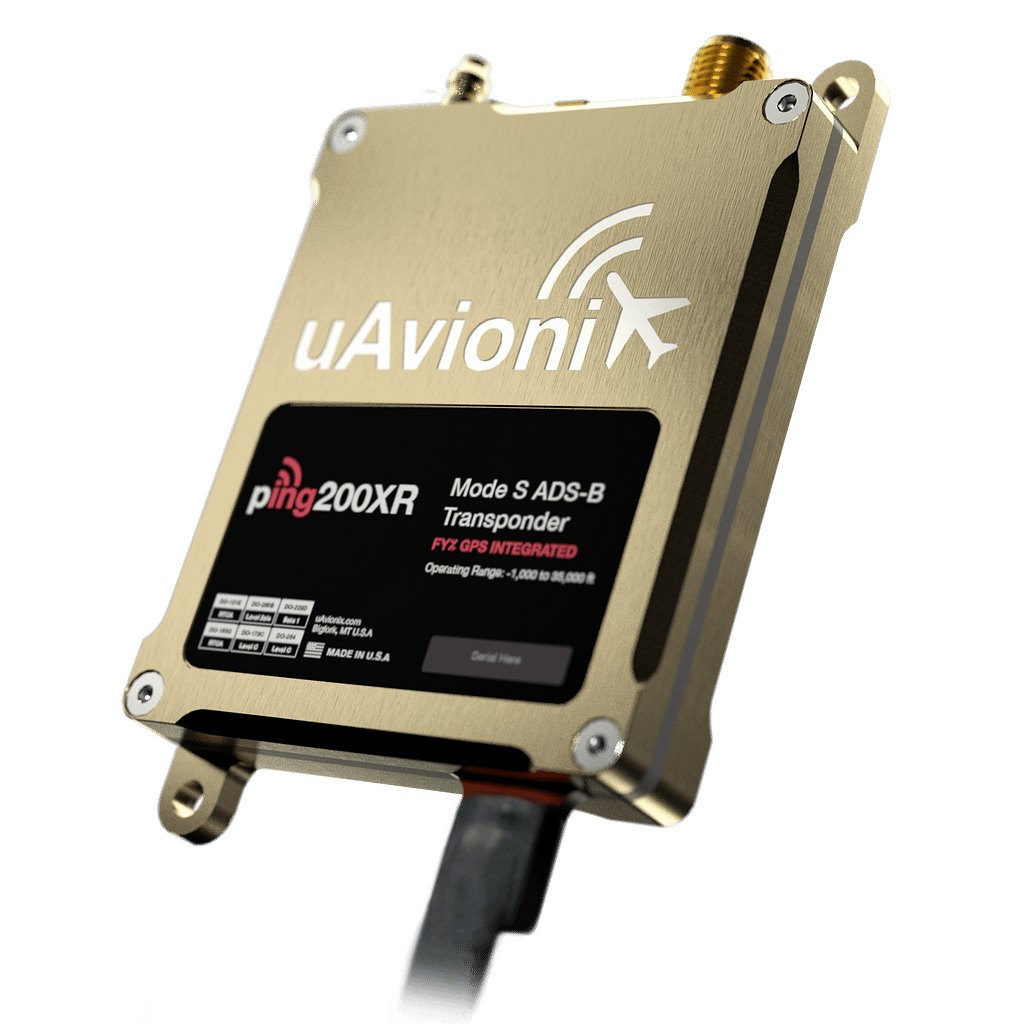

ping200XR is a complete system designed to meet the Transponder and Automatic Dependent Surveillance – Broadcast (ADS-B) requirements for operating Unmanned Aviation Systems (UAS) in controlled airspace. The system is fully configurable as any combination of Mode A, Mode C, Mode S transponder and Extended Squitter ADSB transmitter. The ping200XR includes a barometric sensor with accuracy beyond 60,000ft and a (TSO) certified SBAS Global Positioning System (GPS) position source designed specifically for Unmanned Aircraft Systems (UAS) (TSO-C145e).Parameters
| Specification | Value |
| Input Voltage |
11-34V (3S-8S LiPo) 1.5W Continuous On/Alt 4W Peak (8ms maximum) |
| Size | 47 x 72 x 10 mm |
| Weight | 52 grams |
| SDA/SIL | 2/3 |
| Operating Temp | -45 to 70°C |
| Transponder | |
| MTL 1030MHz | -74dBm ±3dB |
| 1090 Transmit Power | 250W Nominal |
| Position Engine | |
| GPS L1C/A w. SBAS |
12 GPS Channel 3 SBAS Channels |
| HPA / VPA | 5m / 7m |
| Velocity Accuracy | 3 m/s |
| Time Accuracy | 30 ns |
| Update Rate | 5 Hz |
| SIL/SDA | 3/2 |
| Acquisition Sensitivity/ | -148 dBm |
| Tracking Sensitivity/ | -167 dBm |
| Altimeter | |
| Range | -1000 to 35,000ft |
| Interfaces | |
| Control | |
| Baudrate | 1200-2Mbps |
| Protocol | GDL90+ |
| Position | |
| Baudrate | 115200bps |
| Protocol | uAvionix OEM Protocol |
| Options | |
| 1030/1090MHz Transponder Antenna | |
