Introduction

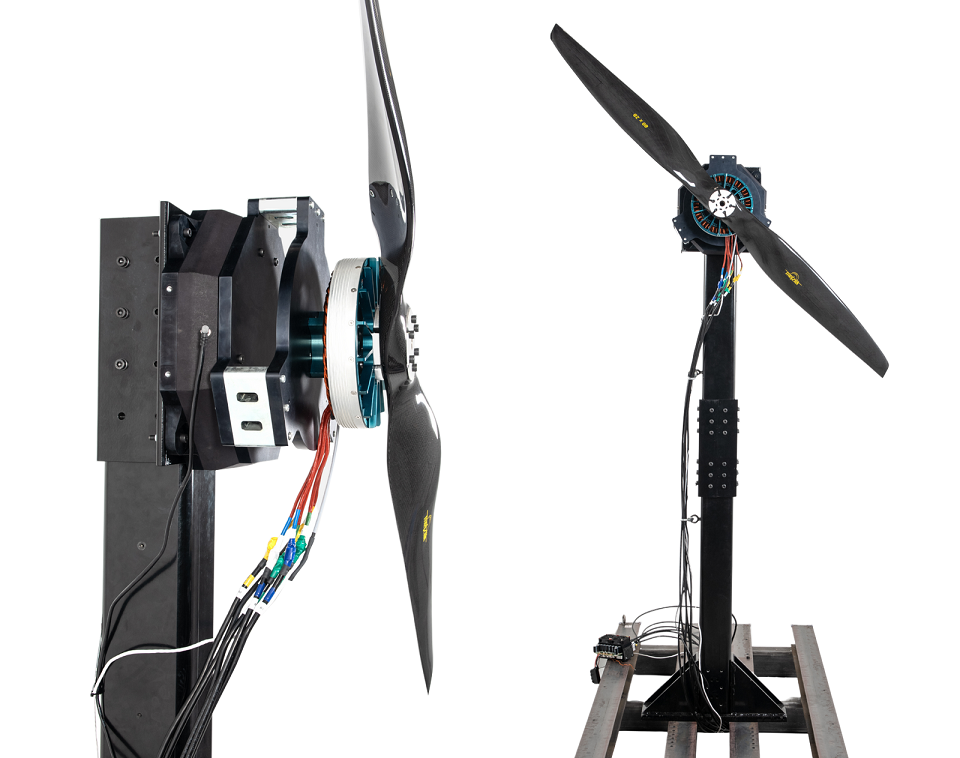

The Flight Stand 500 thrust stand allows you to precisely characterize and evaluate eperformance of your motors and propellers by measuring thrust, torque, RPM, current,voltage, temperature, propeller efficiency and motor efficiency.

1000 Hz sampling rate

Measure vibration, evaluate ESC responsiveness, and characterize the dynamic response of motors and propellers

ASTM calibrated load cell

We adhere to ASTM E74/E2428 standards to provide the most precise measurement on the market

I/O API and Python control

I/O API to read and control extra sensors, CAN ESCs, and more.Fully control the software using Python.

Specifications

■  Thrust: 5000 N

■  Torque: 1500 Nm

■  Voltage: 1000 V

■  Current: 100/200/500 A

■  Angular speed: 300k RPM

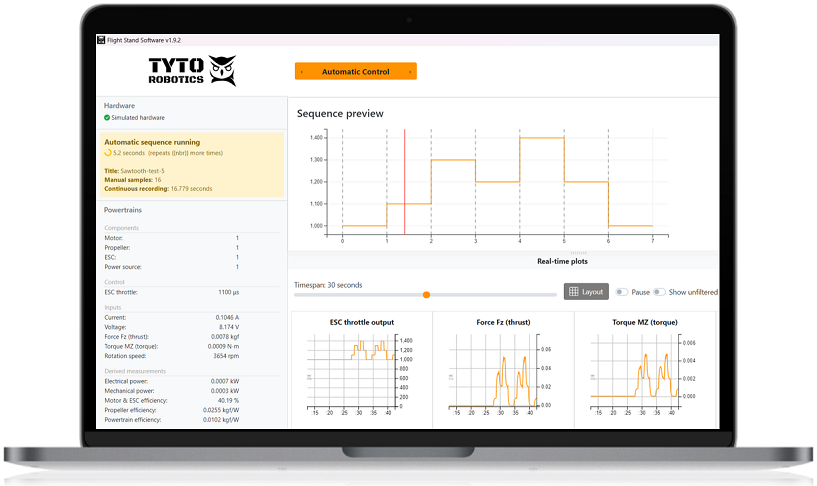

Flight Stand Software

The Flight Stand Software controls your thrust stand and records data. You can manually control tests with a throttle slider or automate tests using a table, data from a .CSV file, or the Python API.
