Introduction

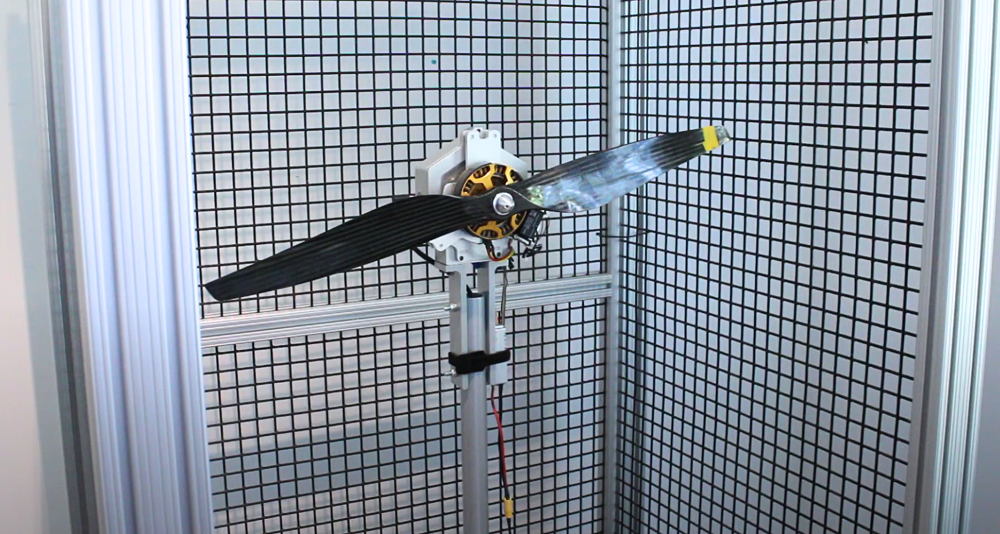

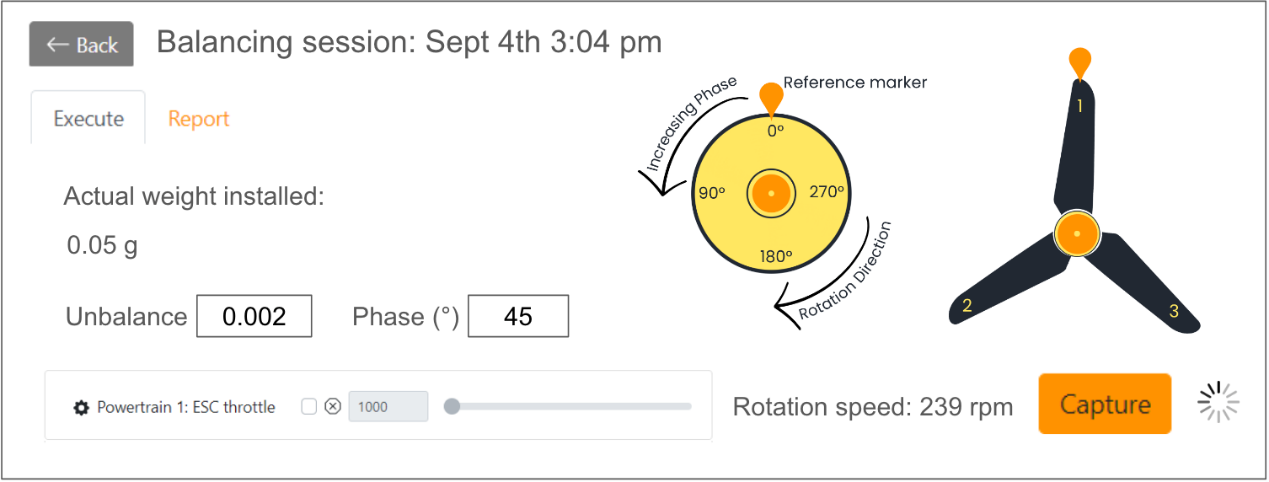

All Tyto Robotics Flight Stand thrust stands now support propeller balancing. In just a few steps, you can achieve ISO 21940-11 quality balancing of your motors and propellers.
The specifications of the test stands that support dynamic balancing capabilities are as follows:
■ Flight Stand 15
■ Flight Stand 50
■ Flight Stand 150
■ Flight Stand 500
Technical Specifications
| Specification | Value | |
| Measurement Information | Sampling rate | Up to 800 Hz |
| Quality grade | ISO 21940-11 standard | |
| Operating environment | Indoor | |
| Balancing RPM range | 200 - 15,000 RPM | |
| Correction method | Added weight | |
| RPM Sensor | Range | Up to 30,000 RPM |
| Resolution | 0.1 RPM | |
| Accuracy | ±1 RPM | |
| Propeller characteristics | Diameter | Depends on Flight Stand model |
| # of blades | 1 or more |
